Life-saving design
Despite its robust construction, the LSU is lightweight, portable and easy to operate – even when wearing gloves. It is splash proof and safe to use in combination with defibrillators. Easily disassemble and clean after use.
Laerdal Suction Unit (LSU)
Laerdal’s portable suction unit (LSU) is widely known for its excellent performance and functional design. It allows for clearing the patient’s airways in a safe and effective way. Rely on a powerful device with long lasting value, when managing emergency situations.
Trusted by healthcare providers since 2000
5
years limited warranty
10
years average lifetime
20+
years market experience
我mproving patient outcomes
The LSU meets all regulatory demands and is trusted by healthcare providers in all corners of the world. You can ensure optimal functionality with the simple device test. Quickly select correct amount of suction with built in LED indicator.
Key benefits
- Easy to operate:One-hand-grip design, lightweight, and easy to assemble/disassemble.
- Visual support: Control panel with color-coding for children vacuum range area. LED display with indicators for suction, battery-level and more.
- Powerful and effective: LSU can reach a vacuum of 500 + mmHg and has a flow rate of >25 LPM, exceeding international standards.
- Canister options: Available as a reusable or semi-disposable option, providing easy conversions between the canister systems.
- Ready when needed: Battery runtime approx. 45 minutes (free flow). Charges automatically when connected to external power source, charges to 80 % after just 3 hours.
- Lasting value: Premium quality materials with 5 year limited warranty.
LSU How-to videos
Key Features
All versions
- One-hand-grip design
- 3 canister options:
Bemis Disposable Canister systems (USA only)
Serres Suction Bag Canister system
Laerdal Reusable Canister system - Easy to convert between the canister systems
- Does not contain latex
- Big vacuum regulator dial
- 吸力水平tracheal suctioning and suctioning of children and infants marked in light blue
- LED display for use day or night
- TEST - Device Diagnostics program
- Approximate noise levels at 80 mmHg of 48 dBA and 500+ mmHg of 56 dBA (free air flow)
- No-tools-necessary field changeable battery
- Rechargeable Battery, NiMH, 12 VDC 2 Ah
- External Battery Charger
- 12V DC Power-cord for connection to vehicle connection
- Weight 4kg (8lbs 13 oz) including battery
- 5 year limited warranty (excluding the canisters, tubing systems and battery)
- Bemis High efficiency filter kit
- Bemis HEPA rated bacterial filter with filter efficiency of 99.97% down to 0.3μm
- Serres filter filters aerosols down to 0.4μm
- LSU Reusable aerosol filter filters aerosols down to 0.3μm
Technical specifications
Operating/Charging Temperature 0° C to 40 °C (32 °F to 104 °F)
Recommended Charging Temperature 15° C to 25 °C (59 °F to 77 °F)
Long term Storage Temperature 0° C to 40 °C (32 °F to 104 °F)
Max. 24 hour Storage Temperature -30° C to 70 °C (-22 °F to 158 °F)
Minimum suction 80 mmHg (110 BAR)
Maximum suction 550 mmHg (733 BAR)
Product versions
The LSU is available as a reusable or semi-disposable option, depending on your requirements. You may easily convert between the canister systems.
LSU with Reusable Canister system
我n this suction system the canister and tubing are reusable.
LSU with Serres Suction Bag Canister system
The LSU with Serres canister and suction bag is a semi-disposable system.
LSU with Bemis Disposable Canister systems (US only)
Laerdal’s fully disposable suction unit uses disposable Bemis canister and disposable suction and vacuum tubes.
技术服务
Laerdal offers all LSU owners servicing. Contact your local sales office for more information.
Regulatory Standards and Approvals
Canada: Holds a class 2 medical device license.
CE marked - This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa
Designed in compliance with EN 1789:2007 + A1:2010, Standard specification for medical vehicles and their equipment - Road ambulances.
Laerdal Medical is certified by DNV GL Presafe AS to ISO 13485:2016
More airway management products
Laerdal’s LCSU® 4 suction unit combines rugged design with lightweight portability, an essential tool for every...
Laerdal’s LCSU® 4 suction unit combines rugged design with lightweight portability, an essential tool for every first responder.
As Laerdal’s option for manual suction, the V-VAC Manual Suction Unit enables effective suction without batteries....
As Laerdal’s option for manual suction, the V-VAC Manual Suction Unit enables effective suction without batteries. The V-Vac manual suction unit is easy to use with its one handed grip, combined with adjustable stroke vacuum for high...

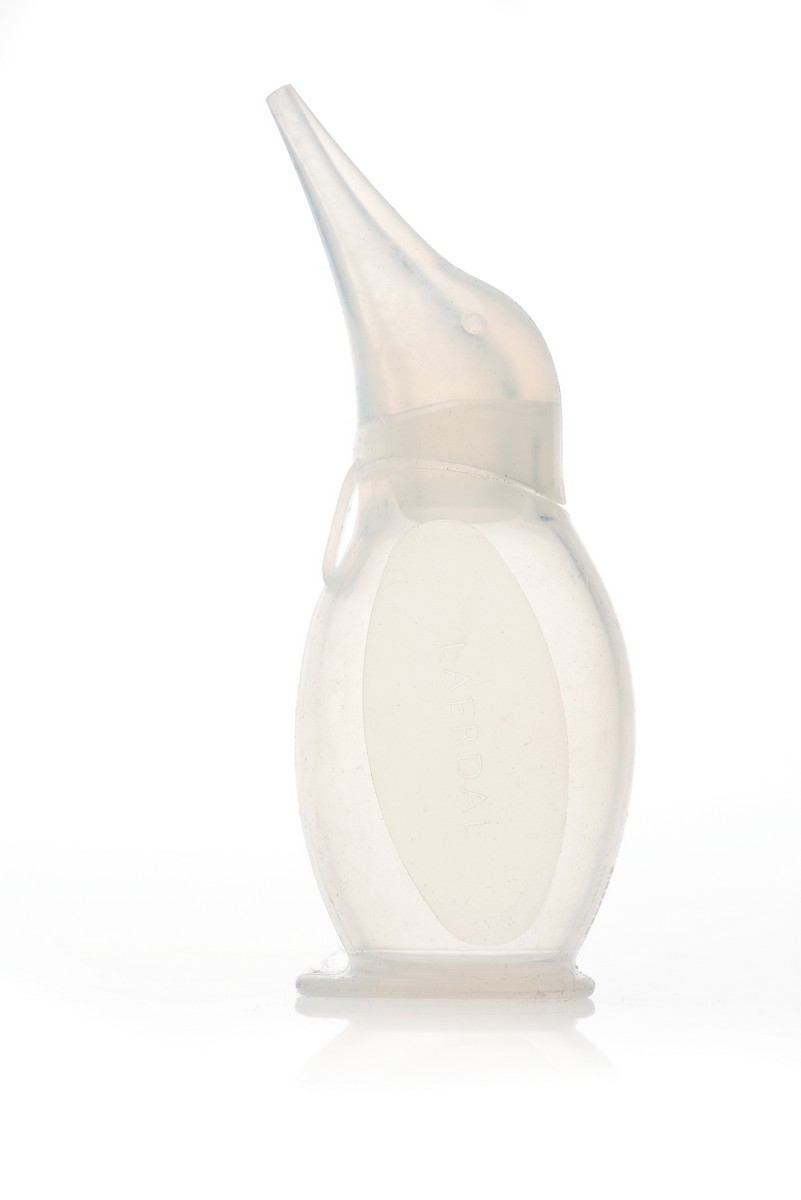

Babies cannot blow their noses or clear their throats. The Penguin helps clearing your baby's airway.
