患者监视器 - 添加现实主义
Integrating a simulated patient monitor enhances clinical realism and will challenge critical thinking skills.
护理凯利：简单，有效的患者护理
With realistic anatomical features Nursing Kelly provides the optimum training experiences for a broad range of clinical skills practice.Nursing Kelly allows students to perform assessments and interventions thereby developing those critical thinking skills necessary in a healthcare environment.
Simulation in Nursing Scenarios from Industry Leaders
整合预先编程的仿真内容，旨在为参与者提供故意的临床培训，重点是针对医院患者护理的特定学习目标。
Building Competencies
护理凯利（Kelly）对从基本到高级患者护理和管理技能的临床培训具有教育性有效。这个灵活的Manikin平台允许添加多个附件模块，包括伤口评估和治疗，NBC模块置换皮肤和静脉系统
Improving Patient Safety
提供持续且一致的质量患者护理的挑战需要适当的培训，准确的评估，干预措施和临床决策技巧，以确保最佳的患者结果。通过在场景云上合并一致的模拟场景，教师可以轻松地将仿真整合到其临床培训课程中，以帮助学习者在没有不良后果的情况下纠正其临床错误并纠正其临床错误。
Effective Simulation-based Training
Utilizing Nursing Kelly for simulation-based training allows students to perform patient assessments and interventions and refine communication and critical thinking skills to ultimately help improve patient outcomes.
护理凯利（Kelly）允许学习者练习标准的患者护理技术，例如气道，呼吸，心脏和循环管理。
现实的Manikin特征
Educationally effective for training core in-hospital skills, targeting those skills specific to hospital care providers. Nursing Kelly is designed to meet the training requirements for basic to advanced patient care and helps facilitate delivery of consistent simulations into nursing curriculums.
这些包括但不限于：
呼吸道：
- 口服和鼻插管
- 插入，确保和护理气管管
- 气管切开术护理和气管吸力
循环：
- 通过Korotkoff声音诊断的血压
- 与ECG同步的单侧臂和径向脉冲
- 可变收缩压和舒张压
- 向外周静脉治疗和现场护理阐明静脉注射臂
Other Features:
- 不rmal and abnormal bowel sounds
- Subclavian IV, various ostomy and chest tube openings
- Interchangeable male and female genitalia for urinary catherterization
- 可互换的造口位点描绘了结肠造口术，回肠造口术和诊断术
- 皮下和肌内注射部位
使用Simpad Plus系统更轻松地模拟
通过Simpad Plus系统运营的护理Kelly将提高您提供基于模拟的培训并实现学习目标的能力。
Simpad Plus系统features:
- Handheld, intuitive touchscreen remote for easy 'pick up and play' experience
- 直接操作或利用场景和主题进行一致的模拟培训
- 质量汇报的最佳数据捕获
- 手机 - 在任何地方教书
- Optional patient monitor provides clinical realism
Specifications

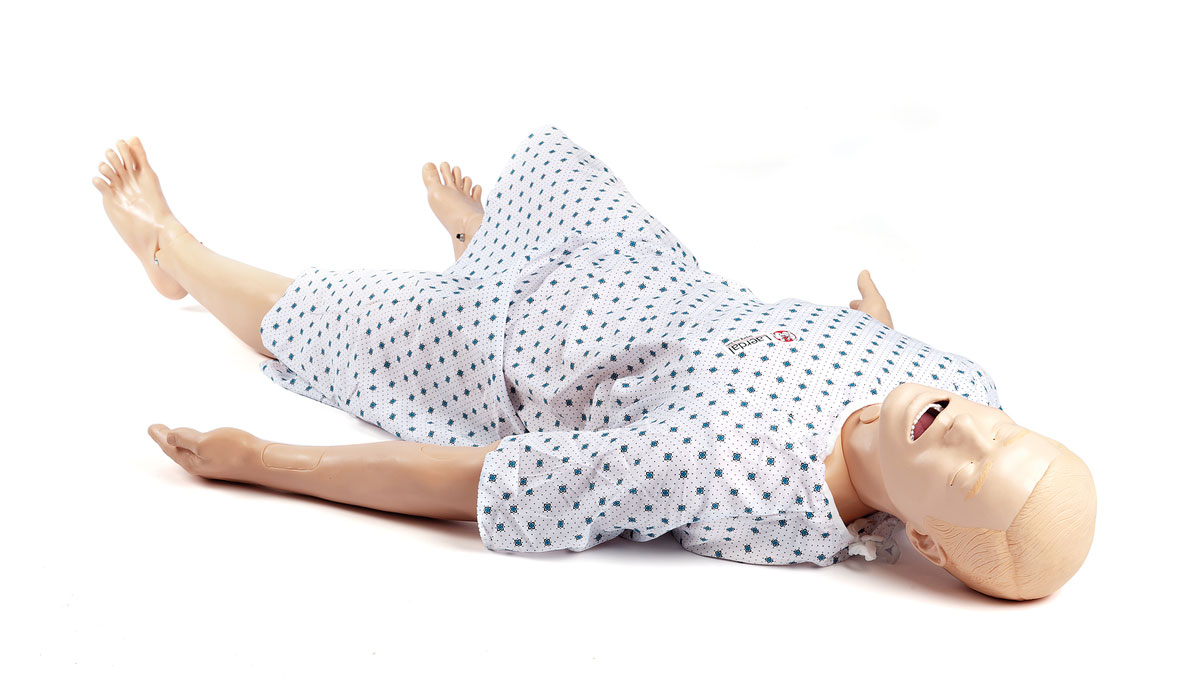

护理凯利is a full-body, lifelike manikin designed to teach all skills from basic patient handling to advanced nursing, including the measurement of noninvasive blood pressure and the auscultation and recognition of normal and abnormal heart, lung and bowel sounds.
护理Kelly Simpad Plus功能包括：
- 成人，全身男性手工艺品
- 多人IV训练臂
- 血压训练臂
- Hospital Gown
- Manikin润滑剂
- 组装工具套件
* SimPad PLUS System (204-30001) required for operation. Sold separately.
护理凯利（Kelly）有光，棕褐色和棕色的肤色：
特征：
病人护理
带有解剖学地标，气管和食道以及模拟肺和胃的头部，允许许多程序的实践：
- 眼睛和耳朵的灌溉（模拟）
- 在眼睛，耳朵和鼻子中施用/灌输药物，包括鼻部包装
- Mouth and denture care procedures
- 口咽和鼻咽气道的插入和吸力
- Insertion, securing, and care of endotracheal tubes
- 气管切开术护理和气管吸力
- Various oxygen delivery procedures
- NG管插入，护理，药物给药和去除
- 胃灌洗和饲料
- Subclavian, jejunostomy and Hickman catheter openings (placement only)
- 手动产生的颈动脉脉冲
- 注射部位包括三角肌，双侧大腿，臀肌和腹侧谷物
- 现实患者处理的全范围运动
- 可互换的斯托马斯描绘了结肠造口术，回肠造口术和闭嘴膀胱切开术
- 结肠造口术可以被灌溉，并保留留置导管
- 直肠与水库进行灌肠程序
- Fingers and toes are spread to allow bandaging
可互换的男性和女性生殖器
- 可以通过连接阀连接到尿和结肠库
- Complete urinary catheterization
- 女性生殖器能够阴道冲洗
- 将保留留置或直导导管
- Enema procedures may be performed using fluid for realistic return
- 当与Manikin一起使用时，流体可用于现实回报
- 尿路插入导管时感觉到自然电阻
- 肛门阀模拟内部肛门括约肌
Articulating IV Training Arm
- 允许外围静脉治疗和现场护理
- Rotates at deltoid
- Venipuncture is possible in the antecubical fossa and dorsum of the hand
- Accessible veins include median, basilic and cephalic
- 可更换皮肤和不可用的静脉系统
Simpad Plus系统功能
Simpad Plus系统的运行需要凯利·辛普（Kelly Simpad）的操作。Simpad Plus系统分别出售。看到Simpad Plus系统page for more information.
Sounds
- 心脏声音与可编程的心电图同步
- Auscultated lung sounds synchronized with breathing rate, 0 - 60 BPM
- 单个肺或双侧声音选择
- 不rmal or abnormal bowel sounds
- Vocal sounds – computer-generated sounds, mixed with voice input (via microphone sold separately)
心音
与可编程的心电图同步
- 主动脉狭窄
- Friction Rub
- Austin Flint Murmur
- 舒张期mi狭窄
- Systolic Murmur
- 二尖瓣脱垂
- 打开SNAP @ 70毫秒
- 不rmal Heart Sounds
肺部声音
与呼吸速率同步为0 - 60 bpm
单个肺或双侧声音选择
- Coarse Crackles
- 细裂纹
- Pneumonia
- Stridor
- Wheeze
- 胸膜擦
- Rhonchi
- 正常的呼吸声音
排便
不rmal and abnormal bowel sounds
- Borborygmus
- 肠度多动
- 肠道低血压
- 不Sound
- 不rmal Bowel
声音
Computer-generated sounds, recorded vocal sounds and real-time voice input (via headset, sold separately)
- 咳嗽
- Vomit
- 呻吟
- 尖叫
- SOB Breathing
- Yes
- 不

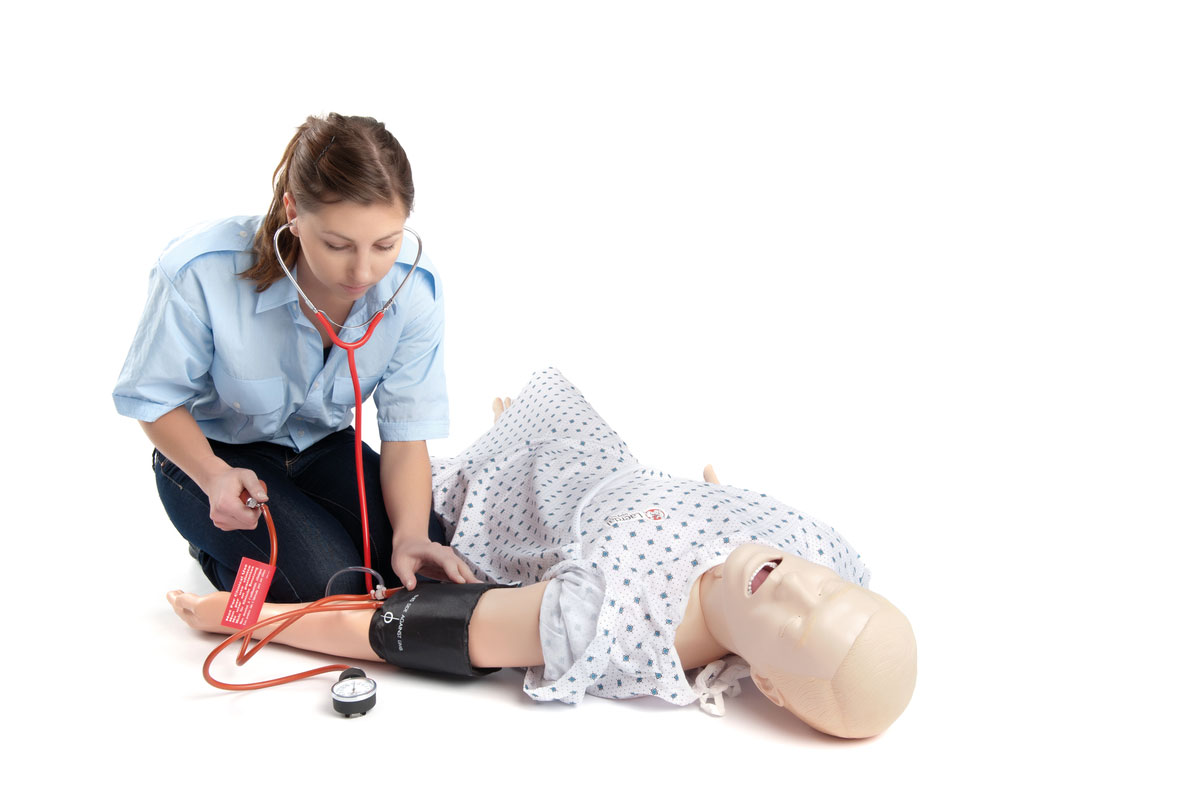

血压 /脉冲
- 阐明血压臂用于听诊和触诊的血压模拟
- Korotkoff sounds synchronized with ECG
- Korotkoff声音音量控制10步，0-9
- 收缩压和舒张压可以单独设置为2mmhg的步骤
- Systolic 0-300mmHG, Diastolic 0-200 mmHG
- 神教差距，开/关功能
- 压力精度+/- 4mmhg
- 校准功能以调节压力传感器和袖口仪表
- Palpated pulse simulator controls brachial and radial pulses
- Pulses only active when palpated
- Pulses synchronized with programmable ECG
- 脉搏强度取决于血压
Simpad Plus操作所需。
记录 /场景功能
- 将日志文件和学生数据下载到PC
- All interventions, vital signs, and notes are time stamped and will be captured in the SimPad data log
- The SimPad log files can be viewed on the SimPad device or on a PC for post-simulation reflection and debriefing
- 使用SimViewer下载日志文件和学生数据。可用的两个版本：
- SessionViewer- View, annotate, print and save the SimPad data log.免费下载可用
- SessionViewer Full License- In addition to the functionality above, incorporate video capture via a USB camera.Purchase a license key to enable maximum functionality.
可选配件：
Patient Monitor (Optional)
- 触摸屏模拟的患者监视器为生理参数提供了简洁的临床反馈。
- 监视颜色屏幕是可配置的，并提供多个模拟参数，每个参数都会显示多级警报。
- 模拟参数包括HR，ECG，SPO2，BP，RR，温度和ETCO2。
