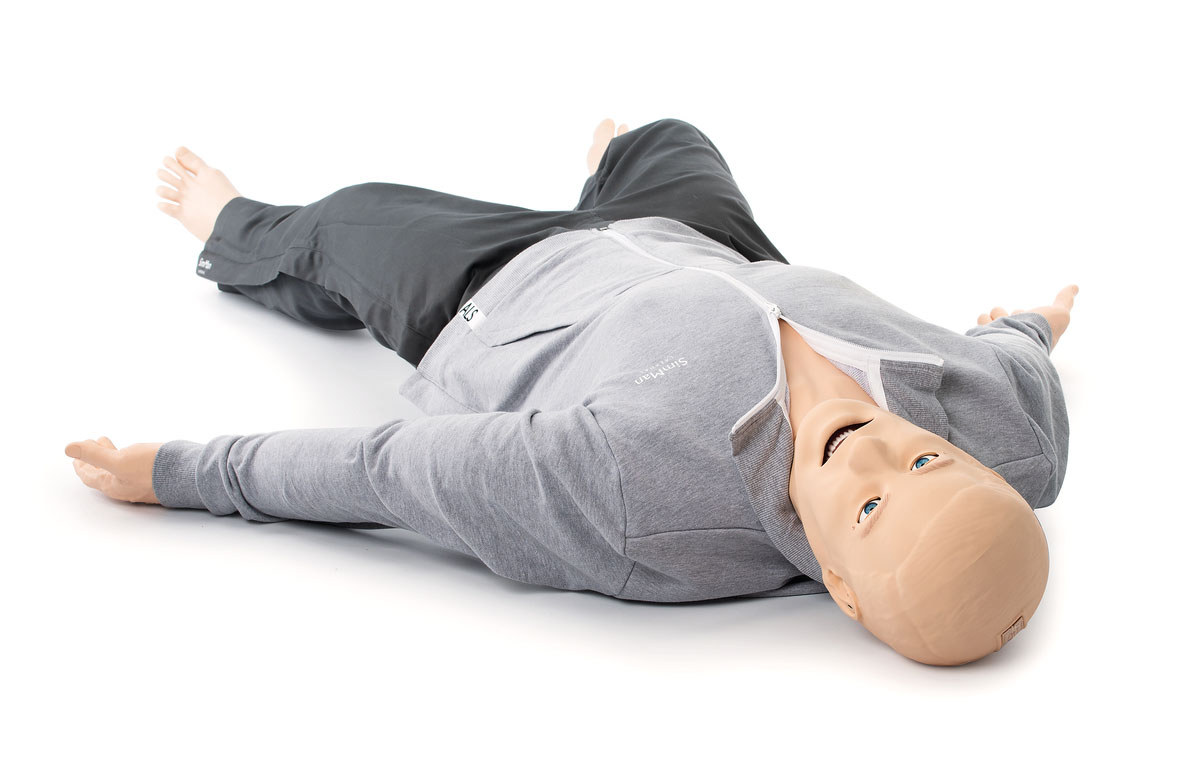

SimMan® ALS

Simman ALS提供了一种移动,耐用的解决方案,该解决方案将满足院前和院内急诊服务提供者的培训需求 - 从基本评估到高级生命支持技能。

High quality realistic ALS training

Simman ALS提供了一种移动,耐用的解决方案,该解决方案将满足院前和院内急诊服务提供者的培训需求 - 从基本评估到高级生命支持技能。从院前,现场评估和管理到医院的确定护理,Simman ALS可以满足紧急医疗保健提供者的独特培训要求。

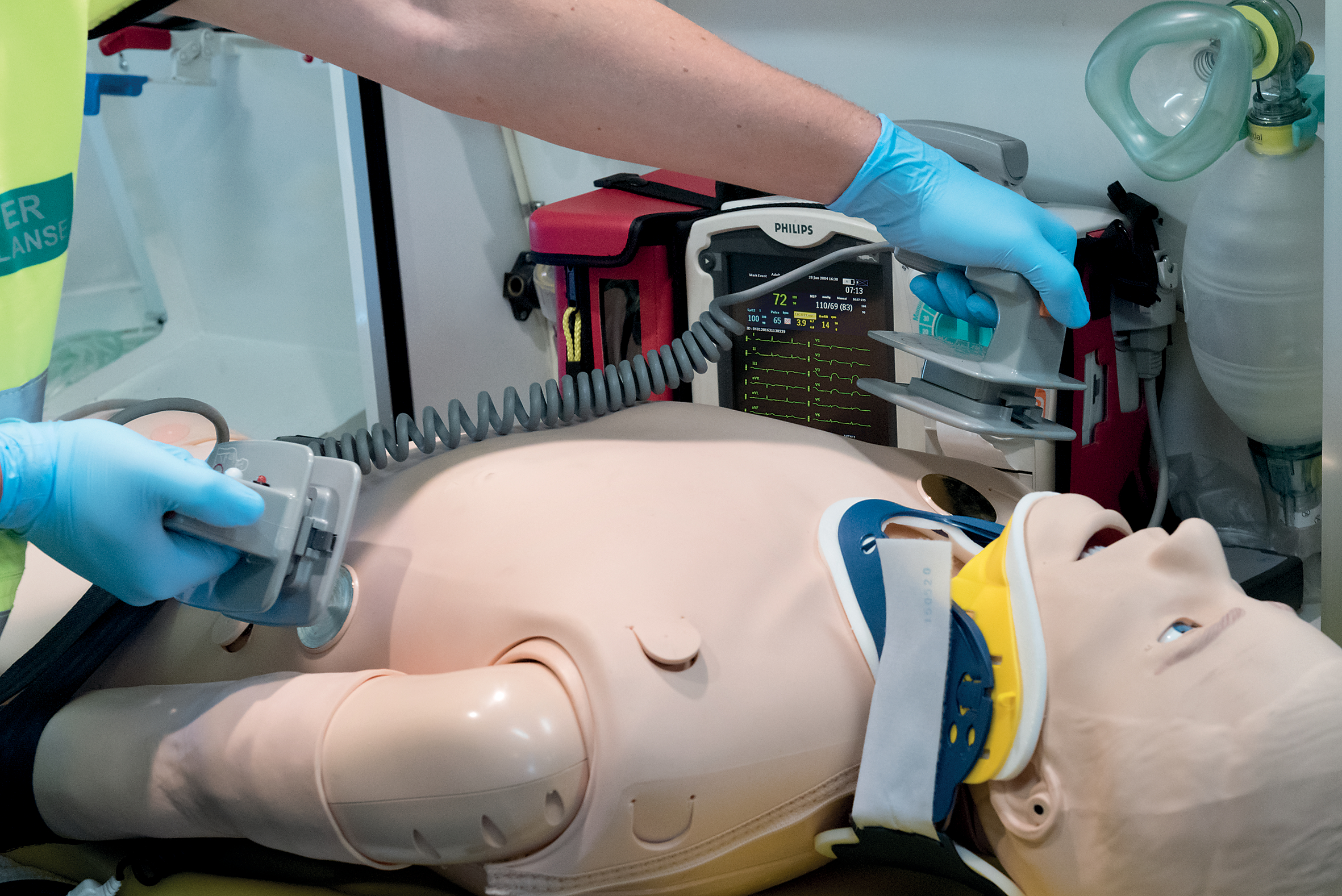

Enhanced defibrillation training with ShockLink or LiveShock


西曼·阿尔斯(Simman Als)与生活霍克(Liveshock)

SimMan ALS LiveShock is a combination of a unique SimMan ALS chest skin and an integrated ShockLink unit that enables the use of a live defibrillator with real pads or paddles. No need for separate training pads or paddles.

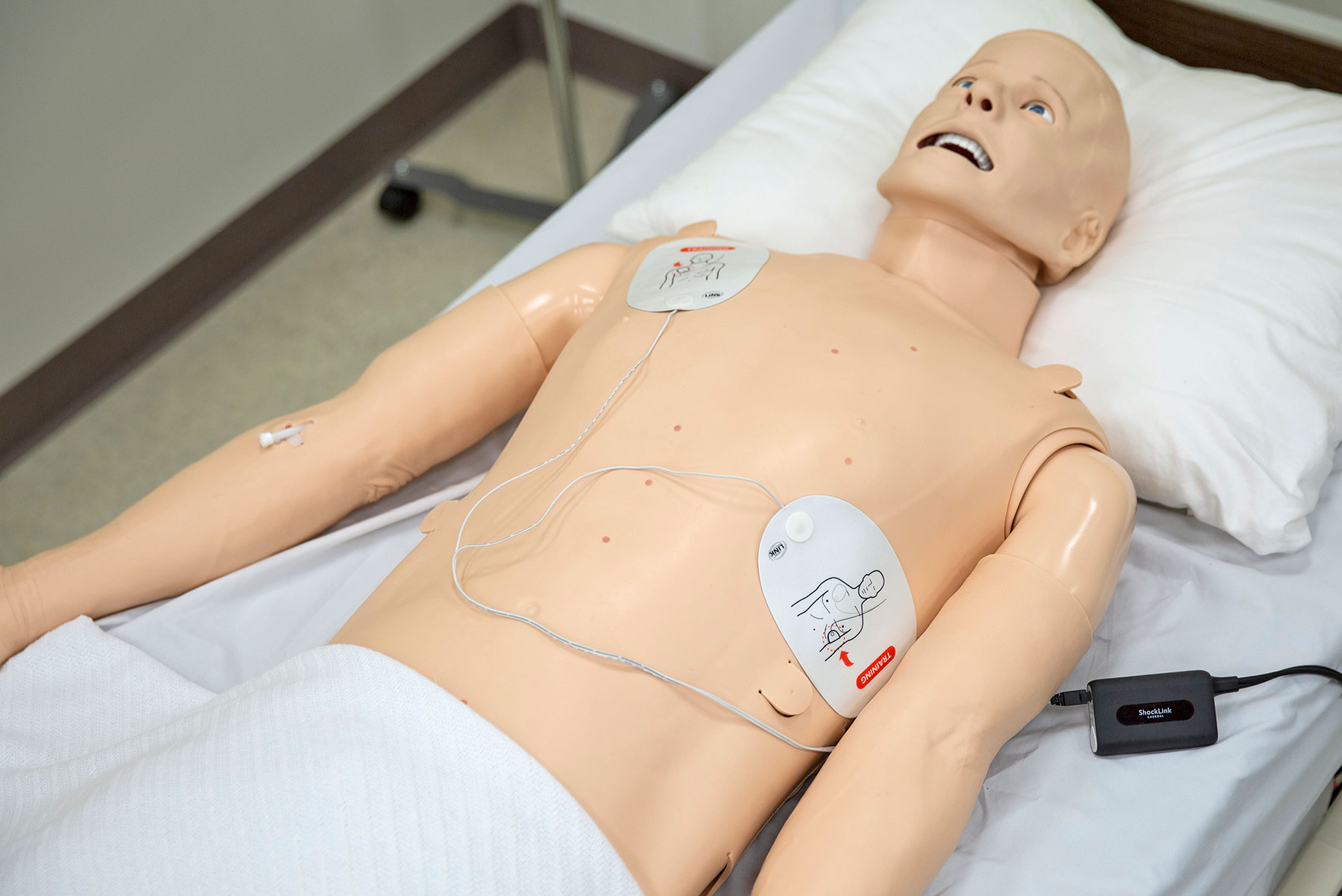

Simman Als与Shocklink

PairingSimManShockLink(bought separately) enables the use of a live defibrillator with training pads.

For both options, training events such as time spent administering CPR, to placing the pads correctly and delivering a shock with minimal interruptions will automatically be captured in theSimPadPLUS or LLEAP data log for assessment and debrief.

操作和汇报选项

无论是使用Simpad Plus还是LLEAP PC运行模拟,该软件都可以轻松且有效地用于基于方案的培训。直观的操作平台可灵活地管理患者参数,集成数据和视频捕获以及模拟的患者监测功能。选择最适合您的培训需求的操作系统。

Take your simulation training further

我们与该领域的专家一起创建了一系列完全集成的升级选项,这些选项可以与其他Simman患者模拟器结合使用,以进一步增强您的模拟。

Utilize the definitive learning management solution with integrated debriefing and assessment tools.

simcapture

Use your own clinical patient monitor during simulation training for increased realism.

Vitalsbridge

Include diagnostic ultrasound featuring real ultrasound cases with pathological findings into full-scale simulations.

Laerdal-SonoSim Ultrasound Solution

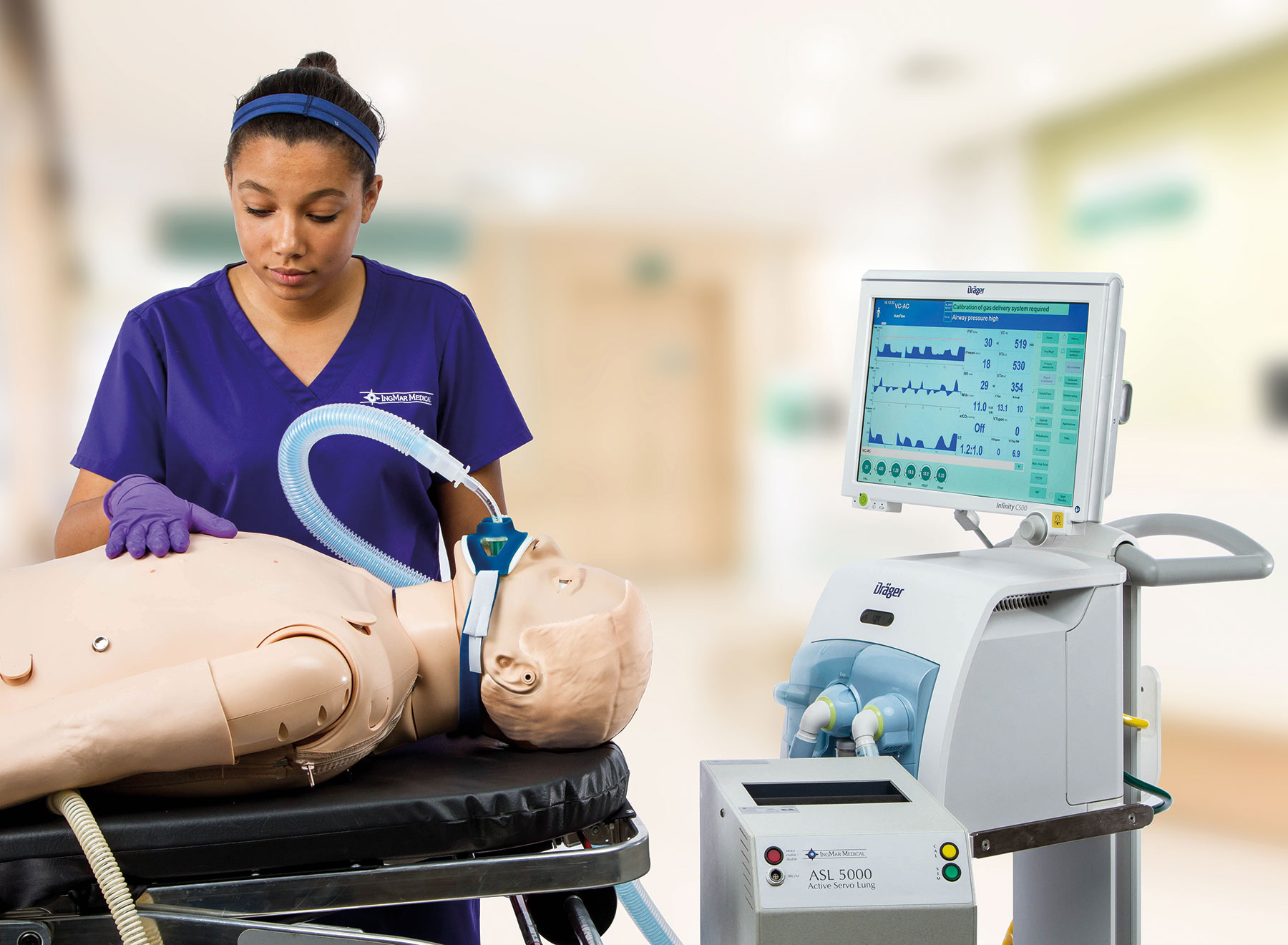

Conduct training with a spontaneously breathing patient supported on a ventilator.

ASL 5000 Lung Solution

A commitment to helping save lives

At Laerdal, we are committed to helping save lives. That is why simulation is a crucial component of our healthcare education portfolio. Our flagship SimMan Simulators build upon decades of experience in the field of medical simulation.

Laerdal is dedicated to helping you meet your educational goals

从模拟器和场景到安装和培训,我们的产品和服务旨在帮助您实现最佳的培训环境。金宝搏官方app下载

SimMan® ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills.

规格

Anterior and posterior lung sounds

CPR measurement capture and review

氰化物与生命体征有关

Pneumothorax with unilateral chest movement

准备超声诊断和增强的除颤训练

血管通道-IV和IO

完全无线和独立

  • 内部电气和气动功率
  • Supplemental wired connectivity and power
  • Wirelessly integrates with existing computer networks
  • Possibility to attach an additional battery on the side to extend the use
  • 坚固且可靠用于多种环境

Multiple Airway Skills/Features:

  • Controllable open/closed airway; automatically or manually controlled
  • Head tilt/Chin lift
  • Jaw thrust w/articulated jaw
  • 抽吸(口腔和鼻咽)
  • 袋罩通风
  • 气管插管
  • Nasotracheal intubation
  • Combitube,LMA,I-GEL和其他气道放置
  • 气管管插管
  • Retrograde intubation
  • Fiberoptic intubation
  • Transtracheal jet ventilation
  • Needle cricothyrotomy
  • 手术裂痕
  • Airway resistance - 3 settings (On/Off/Half)
  • 右主干插管
  • Stomach distention

Airway Complications:

  • Tongue fallback
  • Tongue edema

呼吸功能:

  • 模拟的自发呼吸
  • 双侧和单侧胸部上升和下降
  • 正常和异常呼吸声音
  • 肺听诊部位:后部和前部位
  • Oxygen saturation and waveform

Breathing Complications:

  • Cyanosis
  • 针胸腔 - 双边
  • Unilateral & Bilateral chest movement
  • Chest tube insertion – bilateral

Cardiac Features:

  • Extensive ECG library
  • 心音
  • ECG rhythm monitoring (4 wire)
  • 12 lead ECG display
  • Defibrillation and cardioversion using training pads – ShockLink™ (SimMan ALS w/ ShockLink)
  • 使用实时除颤垫或桨(Simman Als Liveshock)的除颤和心脏version version
  • 起搏

Circulation Features:

  • BP通过Korotkoff声音手动测量
  • 颈动脉,股骨,径向脉冲与ECG同步
  • Pulse strength variable with BP
  • Pulse Palpation is detected & logged

Vascular Access:

  • IV访问(右臂)
  • Intraosseous access (tibia)

CPR:

  • QCPR feedback and scoring compliant with 2010-2015 Guidelines
  • CPR compressions generate palpable pulses, blood pressure wave form and ECG artifacts
  • Realistic compression depth and resistance
  • Automatic detection of depth, release and frequency of compressions as well as hand placement

Eyes:

  • Manually set to: Open, closed and partially open
  • 一组可互换的学生

其它功能:

  • 充分表达骨盆
  • 所有自然方向的腿旋转
  • 福利没有尿导管插入术输出
  • Pre-prepared for use of the SonoSim Ultrasound solution
  • Patient Voice
    • 预先录制的声音
    • 自定义声音
    • 讲师可以无线模拟患者的声音

System Features:

  • Wireless tablet PC controls simulator remotely or SimPad Plus system
  • Control simulations from anywhere on your network
  • 手动模式
    • Precise control “on the fly”
  • Automatic Mode
    • Run pre-packaged scenarios
    • 独特的,简单的控件增加/减少难度和步伐
  • Integrated video debriefing
  • 数据记录
  • Instructor comments
  • Scenarios available on Laerdal Scenario Cloud

Patient Monitor:

  • Wireless
  • Highly configurable
  • Includes (depending on the operating system):
    • ECG (2 traces)
    • Spo2
    • 二氧化碳
    • ABP
    • CVP
    • ICP
    • Anesthetic Agent
    • PH
    • PTC
    • 帕普
    • PCWP
    • NIBP
    • 到F
    • Cardiac Output>
    • Temperature (core & peripheral)
    • Additional and programmable

参数:

  • 12 Lead ECG Display

LLEAP

  • X-Ray Display
  • 自定义图像显示
  • 自定义视频显示

Certifications:

  • UL, CE, FCC, CSA, HMR

Simman Als包括:

  • SimMan ALS Manikin
  • 2 Soft Sided Transportation Cases
  • Specially Designed Clothing
  • 1 Year Manufacturer’s Warranty

Accessories:

  • Operating system:
  • PC or SimPad Plus
  • 模拟的患者监视器和软件
  • Scenarios are available on Laerdal Scenario Cloud

Service Packages*:

  • One or 2 Day Introductory Training Course
  • Advanced Scenario Programming Course
  • Custom One Day Training Package
  • 自定义方案开发包
  • 在现场安装
  • 延长保修
  • Preventative Maintenance
  • Loaner Program

* services available may differ between countries
