Train advanced lifesaving skills in pre-hospital setting.
SimPad® PLUS
Simulation & TrainingSimPad® PLUS is an operating device used to control Laerdal manikins and simulators and can be used with task trainers and standardized patients. It allows instructors, new or experienced, to deliver highly-effective simulation-based training.
When simulation tools are easy to use, teaching becomes more effective
With its intuitive touchscreen interface, mobile design, easy-to-operate scenarios and integrated data log, SimPad PLUS will help you achieve learning objectives with greater ease.
Use SimPad PLUS to:
Standardize the training of patient handling skills.
Deliver high quality advanced skills training.
Improve treatment of compromised newborns.
Deliver high-quality CPR training.
Train using clinically accurate skills trainers.
Realistic clinical experience
Enhance clinical realism and challenge critical thinking skills with dynamic monitoring and patient interaction.
The optional touchscreen Laerdal Patient Monitor provides concise clinical feedback and simulates physiological parameters including HR, ECG, SpO2, BP, RR, Temperature, etCO2, and 12 lead.
The included headset and microphone will enable effective two-way communication with the patient, adding ‘life’ to the simulation.
Key features of the SimPad PLUS
- Mobililty
- Quick set up time
- Intuitive touchscreen interface
- Control of patient vital signs and physiological parameters
- Optimal data capture for effective performance debriefs

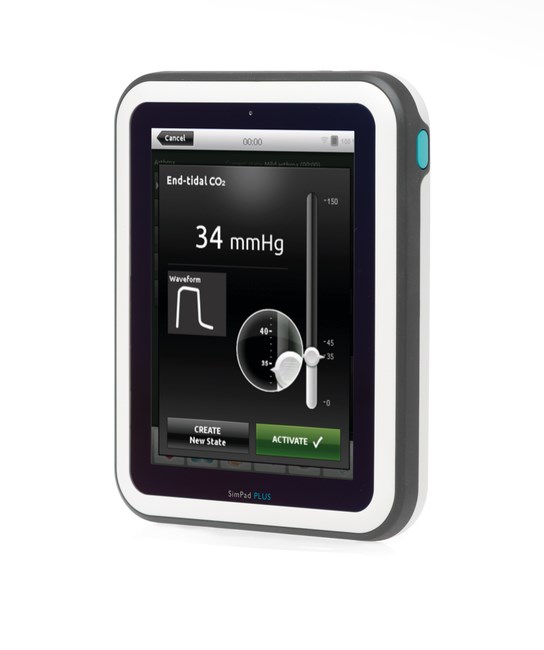

Work the way it suits you
Dual operating modes mean that SimPad PLUS features two unique ways to control simulations. Instructors can individually adjust parameters for real-time control or use pre-programmed content to reduce their workload and increase standardisation.
Manual Mode
Run “on-the-fly” for total control over all parameters or utilise Themes for a more consistent simulation experience. Themes provide a quick and easy way to change the patient’s condition with a single “tap”.

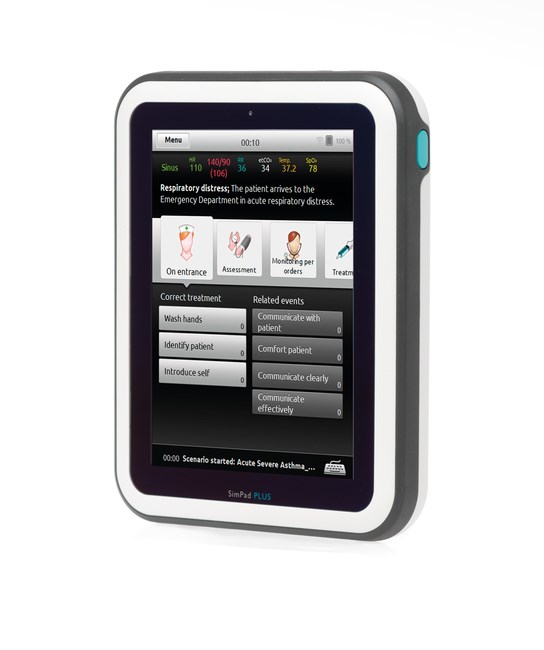

Automatic Mode
Utilise pre-programmed scenarios for a simple and effective way to run a simulation. The logged events, as well as events detected by the patient simulator, can automatically drive the scenario forward.
Easily integrate structured, self-directed learning into curricula
It improves their confidence because now they can learn whenever they want and they do it on their own terms.
SimPad PLUS improvements
User Experience
Our new hardware gives you a more responsive interface and a shorter boot time, allowing you to get started faster.
Bluetooth connection
Required for the operation of Premature Anne
WiFi Connection
Faster data rates, fewer disconnects, and a more enjoyable user experience with dual-band wireless networking.
SimPad® PLUS is an operating device used to control Laerdal manikins and simulators and can be used with task trainers andstandardised病人。它允许instructors, new or experienced, to deliver highly-effective simulation-based training.
SimPad PLUS is compatible with:
Designed and built for nursing education, from basic assessment to advanced practice.
Designed and built for nursing education, from basic assessment to advanced practice.
SimMan® ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital...
SimMan® ALS provides a mobile, durable solution that will meet the training needs of pre-hospital and in-hospital emergency care providers - from basic assessment to advanced life-support skills.
Premature Anne is a 25 week preterm infant developed in collaboration with the American Academy of Pediatrics and...
Premature Anne is a 25 week preterm infant developed in collaboration with the American Academy of Pediatrics and is designed to facilitate training of healthcare professionals in proper care and resuscitation techniques for preterm...
SimJunior® is an interactive pediatric simulator, designed by Laerdal with the American Academy of Pediatrics to...
SimJunior® is an interactive pediatric simulator, designed by Laerdal with the American Academy of Pediatrics to meet the education and training needs of healthcare providers.
新生teth SimNewB®是一个erless simulator co-created with the American Academy of Pediatrics, designed to help...
新生teth SimNewB®是一个erless simulator co-created with the American Academy of Pediatrics, designed to help improve neonatal resuscitation and to meet the specific learning objectives of neonatal resuscitation protocols. Focusing...
Resusci Anne® Simulator has been designed for the unique training needs of emergency care in both pre-hospital...
Resusci Anne® Simulator has been designed for the unique training needs of emergency care in both pre-hospital and in-hospital environments transforming the simulation exercise into a mobile and dynamic learning experience for both...
Resusci Anne® Advanced SkillTrainer offers high quality, yet relatively low cost, advanced skills training.
Resusci Anne® Advanced SkillTrainer offers high quality, yet relatively low cost, advanced skills training.
The advanced life support manikin for realistic training focusing on a wide variety of advanced lifesaving skills...
The advanced life support manikin for realistic training focusing on a wide variety of advanced lifesaving skills for pre-hospital emergencies from advanced airway scenarios to IV therapy.
MegaCode Kid is a realistic manikin for training in a wide range of pediatric advanced life saving skills in...
MegaCode Kid is a realistic manikin for training in a wide range of pediatric advanced life saving skills in pre-hospital emergencies.
Use SimBaby to practice critical patient assessment and handover situations of a 9-month-old simulated patient...
Use SimBaby to practice critical patient assessment and handover situations of a 9-month-old simulated patient in a safe and highly realistic training environment.
Nursing Anne is a manikin designed for scenario-based training for the care and management of basic patient handling...
Nursing Anne is a manikin designed for scenario-based training for the care and management of basic patient handling skills to advanced nursing skills.
Nursing Baby is a full-size infant manikin that realistically simulates a 6-month old patient. It is specifically...
Nursing Baby is a full-size infant manikin that realistically simulates a 6-month old patient. It is specifically designed for training professionals in the practice of basic and advanced infant patient care procedures.
A full-body adult manikin designed for scenario-based training for a wide variety of basic to advanced patient...
A full-body adult manikin designed for scenario-based training for a wide variety of basic to advanced patient care and management skills. Coupled with the SimPad system, training can be delivered efficiently and effectively and for...
The clinical skills training manikin for in-hospital pediatric professionals.
The clinical skills training manikin for in-hospital pediatric professionals.
This product has been discontinued. Consumables and replacement parts will be available until 2026.
This product has been discontinued. Consumables and replacement parts will be available until 2026.
SimPad血压训练手臂的允许practice of non-invasive blood pressure (NIBP) measurement....
SimPad血压训练手臂的允许practice of non-invasive blood pressure (NIBP) measurement. Auscultated and palpated blood pressure simulation is possible.
The SimPad Arrhythmia Trainer features an extensive ECG rhythm collection based on the SimMan 3G ECG library....
The SimPad Arrhythmia Trainer features an extensive ECG rhythm collection based on the SimMan 3G ECG library. Variations for 3-4 lead rhythm recognition using a clinical monitor.
Specifications
SimPad® PLUS System is a tool that makes simulation available at your fingertips - when and where you need it. Whether you’re training on a simulator, task trainer, or standardized patient, SimPad has the flexibility to support your needs and help you provide the best possible simulation experience.
SimPad PLUS System Includes:
SimPad PLUS Handheld Remote, Link Box PLUS, 2 AC Power Supplies, Rechargeable Lithium-Ion battery, Wrist Strap for SimPad, Manikin Strap for Link Box PLUS, Protective Sleeve, USB Cable, Ethernet Cable, Handset/Microphone and User Guide.
Simulated Patient Monitor options:
- Portable tablet monitor
- Laptop monitor
- Bedside panel monitor
- Rugged tablet monitor
- The optional touchscreen patient monitor simulates Heart rate, SpO2, Blood Pressure, Respiratory Rate, Temperature, ECG, and etCO2.
血压
- Auscultated and palpated blood pressure simulation
- Korotkoff sounds synchronized with programmable ECG
- Korotkoff sounds volume control in 10 steps, 0-9
- Systolic and diastolic pressure may be set individually in steps of 2mmhg
- Systolic 0-300mmhg, Diastolic 0-200 mmhg
- Auscultative gap, with on/off feature
- Pressure accuracy +/- 4mmhg
- Calibrate function to adjust pressure sensor and cuff gauge
Pulses
- Controls carotid, brachial, radial, and umbilical pulses (available pulses vary depending on manikin)
- Pulses only active when palpated
- Pulses synchronized with ECG
- Pulse strengths dependent or independently set
- Brachial pulse off when BP cuff pressure is above 20 mmhg
- Radial pulse off when BP cuff pressure is above Systolic BP level
ECG
- 3 – 4 lead ECG
- Pacing and defibrillation capabilities
- Extensive ECG library based on the SimMan 3G ECG library
- With optional patient monitor: 12 lead ECG
Heart Sounds
- Synchronized with programmable ECG
- Aortic Stenosis
- Friction Rub
- Austin Flint Murmur
- Diastolic Murmur
- Systolic Murmur
- Mitral Valve Prolapse
- Opening Snap Msec
- Ventricular Septal Defect
- Atrial Septal Defect
- Pulmonary Stenosis
- Stills Murmur
- Normal Heart Sounds
Lung Sounds
- Synchronized with breathing rate, 0-60bpm
- Individual lung or bilateral sound selection
- Course Crackles
- Fine Crackles
- Normal Breath Sounds
- Pneumonia
- Stridor
- Wheeze
- Pleural Rub
- Rhonchi
Bowel Sounds
- Normal and abnormal bowel sounds
- Borborygmus
- Fetal Tones
- Hyperactive Bowel
- Hypoactive Bowel
- Normal Bowel
Vocal Sounds
- Computer-generated sounds, mixed with voice input (via microphone)
- Cough
- Vomit
- Moan
- Scream
- SOB Breathing
- Yes
- No
- Hiccup (infant)
- Cry (infant)
Logging / Scenario Function
- Download log files and student data to a PC
- All interventions, vital signs, and notes are time stamped and will be captured in the SimPad PLUS data log
- The SimPad PLUS log files can be viewed on the SimPad PLUS device or on a PC for post-simulation reflection and debriefing
General
- The SimPad PLUS System includes the SimPad PLUS Remote with 5.7” color display and touchscreen operation, and compact Link Box with rechargeable battery
- Intuitive software with Manual and Automatic modes
- Li-Ion Battery, 3 – 4 hours operating time
